F-120.18.820

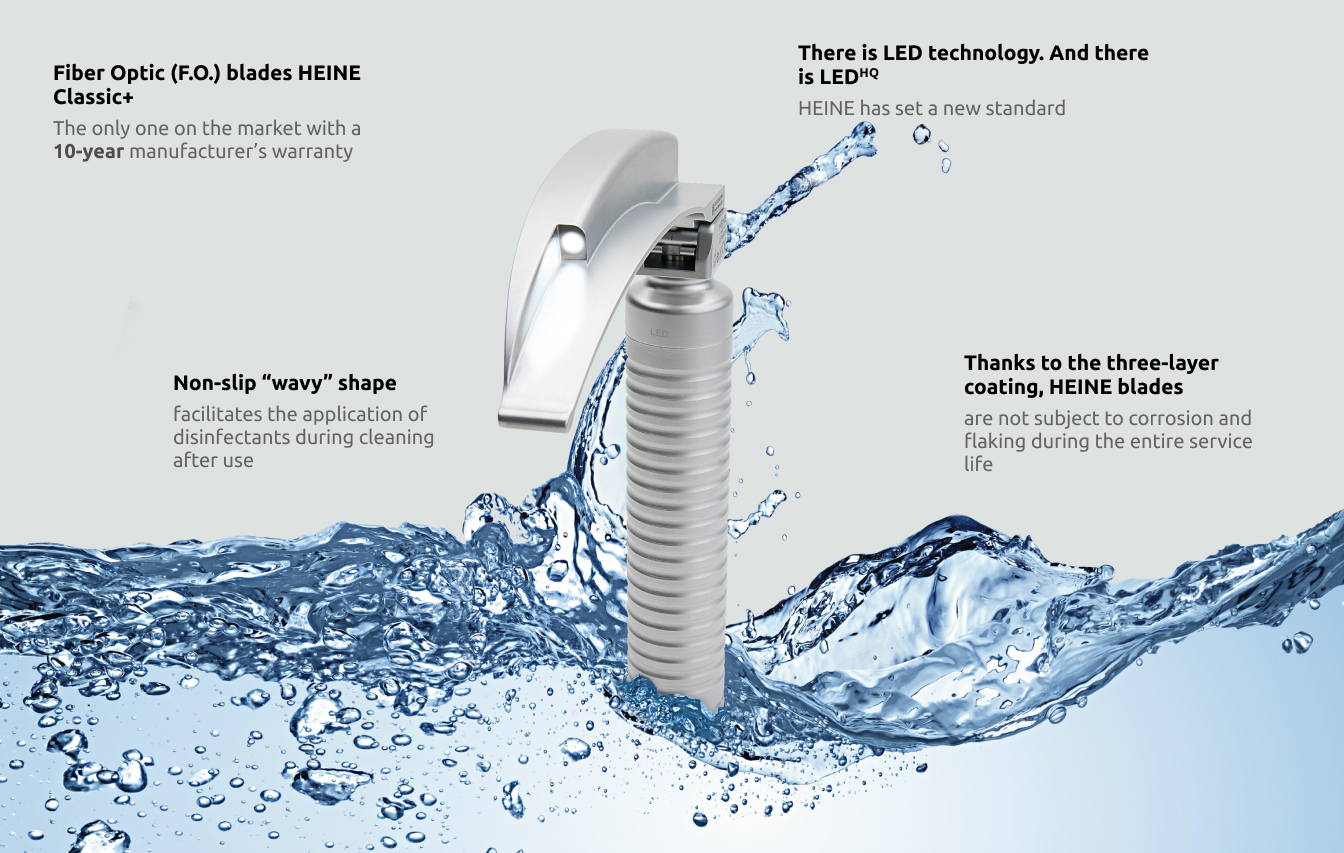

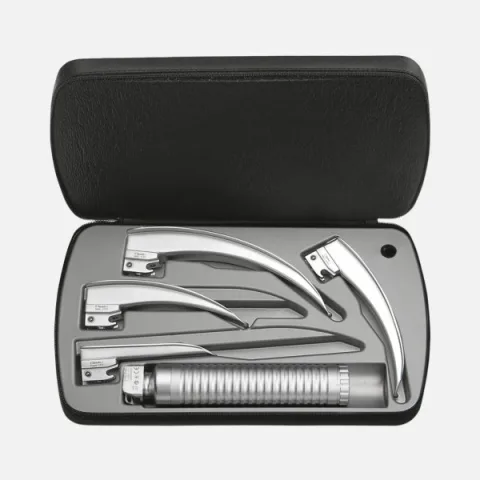

Laryngoscopy set: HEINE Paed 1, Mac 2, Mac 3, Mac 4 blades, EasyClean LED battery handle, zippered case.

Laryngoscopy set: HEINE Paed 1, Mac 2, Mac 3, Mac 4 blades, EasyClean LED battery handle, zippered case.
Kit contents and specifications
HEINE Classic+ Fiber Optic (F.O.) Laryngoscope Blade Macintosh 2
HEINE Classic+ Fiber Optic (F.O.) Laryngoscope Blade Macintosh 2
1 pcs.
F-000.22.102
Specifications
Blade type
Reusable, sterilizable without disassembly
Blade coating
2 layers of nickel + special HEINE coating + chrome
Nickel layer thickness
10 μm
Chrome plating thickness
1 μm
Fiber optic bundle diameter
4,3 mm
Shape of the light guide
Round
Tightness and protection of the fiber optics
Presence of a steel ring around the fiber bundle on both sides of the light guide
Blade length, mm
98 mm
Overall length, mm
114 mm
Distal end width, mm
14 mm
Fiber optic (number of fibers)
6500
Warranty
10 years
HEINE Classic+ Fiber Optic (F.O.) Laryngoscope Blade Macintosh 3
HEINE Classic+ Fiber Optic (F.O.) Laryngoscope Blade Macintosh 3
1 pcs.
F-000.22.103
Specifications
Blade type
Reusable, sterilizable without disassembly
Blade coating
2 layers of nickel + special HEINE coating + chrome
Nickel layer thickness
10 μm
Chrome plating thickness
1 μm
Fiber optic bundle diameter
4,3 mm
Shape of the light guide
Round
Tightness and protection of the fiber optics
Presence of a steel ring around the fiber bundle on both sides of the light guide
Blade length, mm
118 mm
Overall length, mm
134 mm
Distal end width, mm
14 mm
Fiber optic (number of fibers)
6500
Warranty
10 years
HEINE Classic+ Fiber Optic (F.O.) Laryngoscope Blade Macintosh 4
HEINE Classic+ Fiber Optic (F.O.) Laryngoscope Blade Macintosh 4
1 pcs.
F-000.22.104
Specifications
Blade type
Reusable, sterilizable without disassembly
Blade coating
2 layers of nickel + special HEINE coating + chrome
Nickel layer thickness
10 μm
Chrome plating thickness
1 μm
Fiber optic bundle diameter
4,3 mm
Shape of the light guide
Round
Tightness and protection of the fiber optics
Presence of a steel ring around the fiber bundle on both sides of the light guide
Blade length, mm
139 mm
Overall length, mm
155 mm
Distal end width, mm
15 mm
Fiber optic (number of fibers)
6500
Warranty
10 years
HEINE Classic+ Paed 1 Fiber-optic (F.O.) Blade
HEINE Classic+ Paed 1 Fiber-optic (F.O.) Blade
1 pcs.
F-000.22.111
Specifications
Blade type
Reusable, sterilizable without disassembly
Blade coating
2 layers of nickel + special HEINE coating + chrome
Nickel layer thickness
10 μm
Chrome plating thickness
1 μm
Fiber optic bundle diameter
3,6 mm
Shape of the light guide
Round
Tightness and protection of the fiber optics
Presence of a steel ring around the fiber bundle on both sides of the light guide
Blade length, mm
78 mm
Overall length, mm
95 mm
Distal end width, mm
13 mm
Fiber optic (number of fibers)
6500
Warranty
10 years
HEINE EasyClean LED battery laryngoscope handle
HEINE EasyClean LED battery laryngoscope handle
1 pcs.
F-008.22.820
Specifications
Components
Outer part with LED bulb, lower module, 2 C / LR14 batteries (not included)
Housing material
Metal, plastic, glass
Surface
Matte rifled (anti-slip) / Chrome-plated
Handle type
Battery Handle
Handle size
Standard
Easy-clean Handles
Yes
Connection
Laryngoscope blade connection port (according to "Green Standard" ISO 7376)
LED service life
50 000 hours
Fade-Out function
Yes
Size
156 x 29,6 mm
Working time
10 hours
Light temperature
5000 K
Weight
266 g
Warranty
5 years
Zippered case for HEINE laryngoscopes
Zippered case for HEINE laryngoscopes
1 pcs.
F-179.00.000
Show more
Laryngoscopy set: HEINE Paed 1, Mac 2, Mac 3, Mac 4 blades, EasyClean LED battery handle, zippered case.
