F-120.94.865

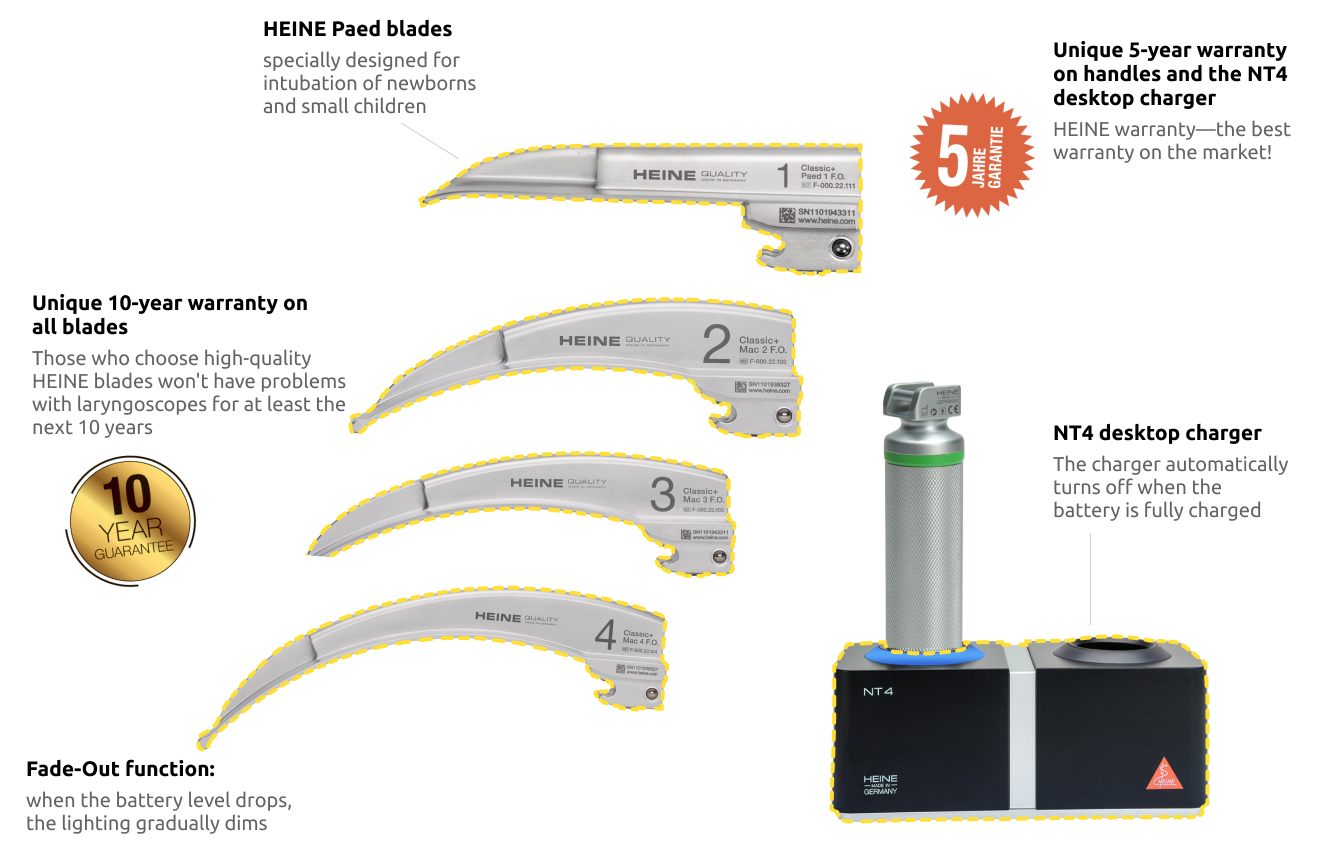

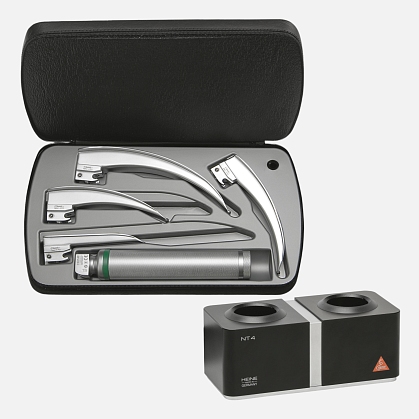

Laryngoscopy set: HEINE Paed 1, Mac 2, Mac 3, Mac 4 blades, Standard F.O.4 LED NT rechargeable handle, NT4 desktop charger, zippered case.

Laryngoscopy set: HEINE Paed 1, Mac 2, Mac 3, Mac 4 blades, Standard F.O.4 LED NT rechargeable handle, NT4 desktop charger, zippered case.
Kit contents and specifications
HEINE Classic+ Fiber Optic (F.O.) Laryngoscope Blade Macintosh 2
HEINE Classic+ Fiber Optic (F.O.) Laryngoscope Blade Macintosh 2
1 pcs.
F-000.22.102
Specifications
Blade type
Reusable, sterilizable without disassembly
Blade coating
2 layers of nickel + special HEINE coating + chrome
Nickel layer thickness
10 μm
Chrome plating thickness
1 μm
Fiber optic bundle diameter
4,3 mm
Shape of the light guide
Round
Tightness and protection of the fiber optics
Presence of a steel ring around the fiber bundle on both sides of the light guide
Blade length, mm
98 mm
Overall length, mm
114 mm
Distal end width, mm
14 mm
Fiber optic (number of fibers)
6500
Warranty
10 years
HEINE Classic+ Fiber Optic (F.O.) Laryngoscope Blade Macintosh 3
HEINE Classic+ Fiber Optic (F.O.) Laryngoscope Blade Macintosh 3
1 pcs.
F-000.22.103
Specifications
Blade type
Reusable, sterilizable without disassembly
Blade coating
2 layers of nickel + special HEINE coating + chrome
Nickel layer thickness
10 μm
Chrome plating thickness
1 μm
Fiber optic bundle diameter
4,3 mm
Shape of the light guide
Round
Tightness and protection of the fiber optics
Presence of a steel ring around the fiber bundle on both sides of the light guide
Blade length, mm
118 mm
Overall length, mm
134 mm
Distal end width, mm
14 mm
Fiber optic (number of fibers)
6500
Warranty
10 years
HEINE Classic+ Fiber Optic (F.O.) Laryngoscope Blade Macintosh 4
HEINE Classic+ Fiber Optic (F.O.) Laryngoscope Blade Macintosh 4
1 pcs.
F-000.22.104
Specifications
Blade type
Reusable, sterilizable without disassembly
Blade coating
2 layers of nickel + special HEINE coating + chrome
Nickel layer thickness
10 μm
Chrome plating thickness
1 μm
Fiber optic bundle diameter
4,3 mm
Shape of the light guide
Round
Tightness and protection of the fiber optics
Presence of a steel ring around the fiber bundle on both sides of the light guide
Blade length, mm
139 mm
Overall length, mm
155 mm
Distal end width, mm
15 mm
Fiber optic (number of fibers)
6500
Warranty
10 years
HEINE Classic+ Paed 1 Fiber-optic (F.O.) Blade
HEINE Classic+ Paed 1 Fiber-optic (F.O.) Blade
1 pcs.
F-000.22.111
Specifications
Blade type
Reusable, sterilizable without disassembly
Blade coating
2 layers of nickel + special HEINE coating + chrome
Nickel layer thickness
10 μm
Chrome plating thickness
1 μm
Fiber optic bundle diameter
3,6 mm
Shape of the light guide
Round
Tightness and protection of the fiber optics
Presence of a steel ring around the fiber bundle on both sides of the light guide
Blade length, mm
78 mm
Overall length, mm
95 mm
Distal end width, mm
13 mm
Fiber optic (number of fibers)
6500
Warranty
10 years
HEINE NT 4 Desktop Charger
HEINE NT 4 Desktop Charger
1 pcs.
X-002.99.494
Specifications
Housing material
Metal, plastic
Size
142 x 61 x 66 mm
Charge time
Charge time for handles: * 2 hours 45 minutes (90%) * 6 hours (100%)
Charging sockets
2
Charging 1 and 2 handles
Independent. Simultaneous charging of two handles is possible.
Automatic charging at any charge level
Yes
Automatic shut-off when the battery is fully charged
Yes
Charge indicator
Pulsing light indicates that charging is in progress, while a solid light indicates that charging is complete.
No memory effect when charging the battery.
Full power at all times, without capacity reduction.
Dust cap for an unused socket.
Yes
Weight
700 g
Warranty
5 years
Zippered case for HEINE laryngoscopes
Zippered case for HEINE laryngoscopes
1 pcs.
F-179.00.000
Show more
Laryngoscopy set: HEINE Paed 1, Mac 2, Mac 3, Mac 4 blades, Standard F.O.4 LED NT rechargeable handle, NT4 desktop charger, zippered case.
