F-119.94.865

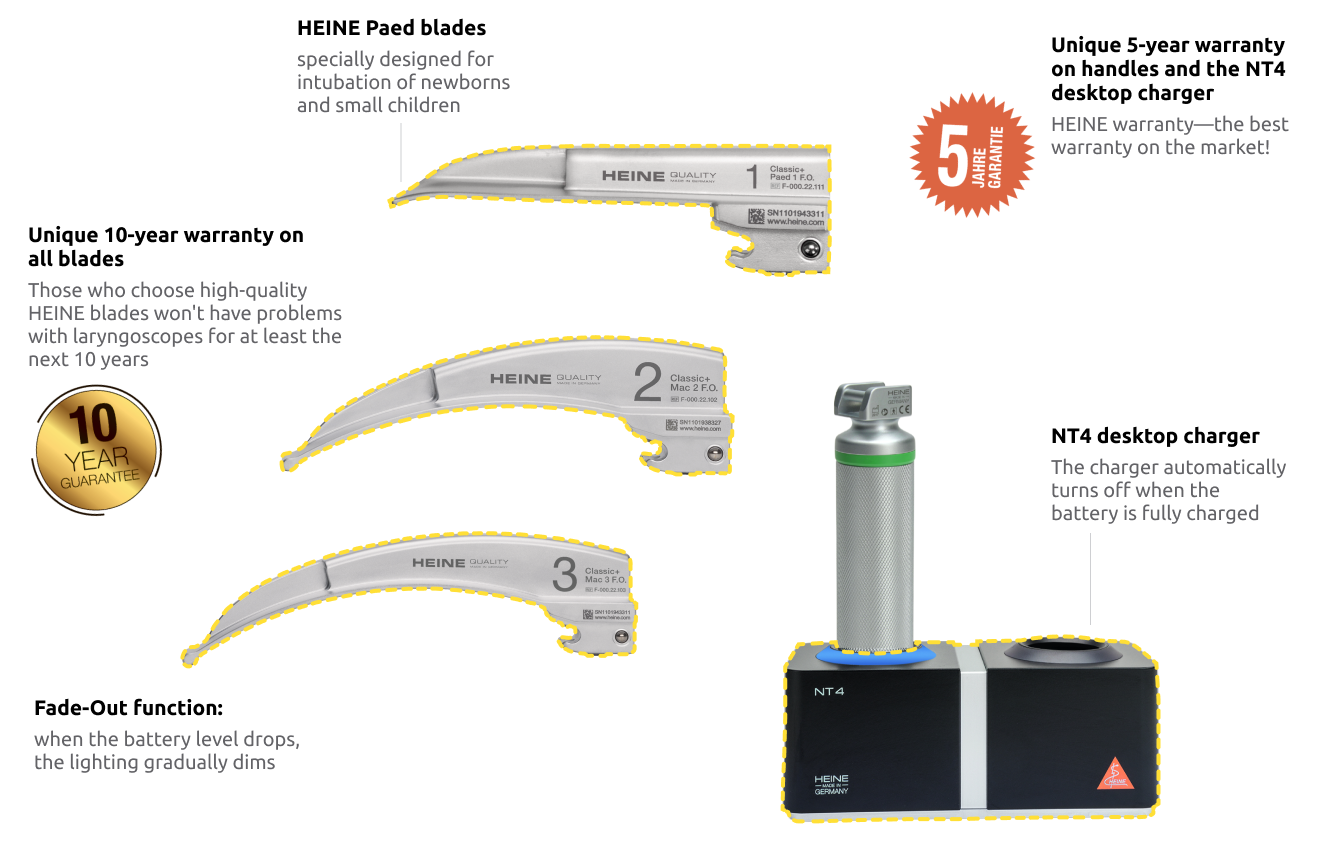

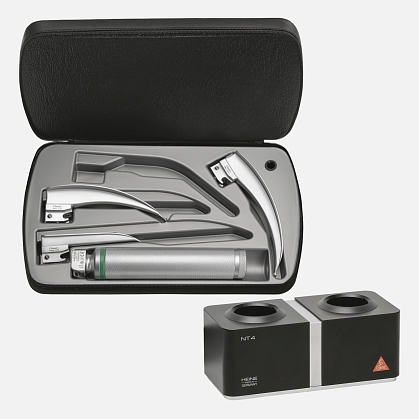

Laryngoscopy set: HEINE Paed 1, Mac 2, Mac 3 blades, Standard F.O.4 LED NT rechargeable handle, NT4 desktop charger, zippered case.

Name: Laryngoscopy set: HEINE Paed 1, Mac 2, Mac 3 blades, Standard F.O.4 LED NT rechargeable handle, NT4 desktop charger, zippered case.
Brand: HEINE
SKU: F-119.94.865
Price: 1221 EUR
Availability: InStock

Quantity

Price

1,221 €

prices exclude VAT

Get consultation

Kit contents and specifications

HEINE Classic+ Fiber Optic (F.O.) Laryngoscope Blade Macintosh 2

1 pcs.

F-000.22.102

Specifications

Blade type

Reusable, sterilizable without disassembly

Blade coating

2 layers of nickel + special HEINE coating + chrome

Nickel layer thickness

10 μm

Chrome plating thickness

1 μm

Fiber optic bundle diameter

4,3 mm

Shape of the light guide

Round

Tightness and protection of the fiber optics

Presence of a steel ring around the fiber bundle on both sides of the light guide

Blade length, mm

98 mm

Overall length, mm

114 mm

Distal end width, mm

14 mm

Fiber optic (number of fibers)

6500

Warranty

10 years

HEINE Classic+ Fiber Optic (F.O.) Laryngoscope Blade Macintosh 3

1 pcs.

F-000.22.103

Specifications

Blade type

Reusable, sterilizable without disassembly

Blade coating

2 layers of nickel + special HEINE coating + chrome

Nickel layer thickness

10 μm

Chrome plating thickness

1 μm

Fiber optic bundle diameter

4,3 mm

Shape of the light guide

Round

Tightness and protection of the fiber optics

Presence of a steel ring around the fiber bundle on both sides of the light guide

Blade length, mm

118 mm

Overall length, mm

134 mm

Distal end width, mm

14 mm

Fiber optic (number of fibers)

6500

Warranty

10 years

HEINE Classic+ Paed 1 Fiber-optic (F.O.) Blade

1 pcs.

F-000.22.111

Specifications

Blade type

Reusable, sterilizable without disassembly

Blade coating

2 layers of nickel + special HEINE coating + chrome

Nickel layer thickness

10 μm

Chrome plating thickness

1 μm

Fiber optic bundle diameter

3,6 mm

Shape of the light guide

Round

Tightness and protection of the fiber optics

Presence of a steel ring around the fiber bundle on both sides of the light guide

Blade length, mm

78 mm

Overall length, mm

95 mm

Distal end width, mm

13 mm

Fiber optic (number of fibers)

6500

Warranty

10 years

HEINE NT 4 Desktop Charger

1 pcs.

X-002.99.494

Specifications

Housing material

Metal, plastic

Size

142 x 61 x 66 mm

Charge time

Charge time for handles: * 2 hours 45 minutes (90%) * 6 hours (100%)

Charging sockets

Charging 1 and 2 handles

Independent. Simultaneous charging of two handles is possible.

Automatic charging at any charge level

Yes

Automatic shut-off when the battery is fully charged

Yes

Charge indicator

Pulsing light indicates that charging is in progress, while a solid light indicates that charging is complete.

No memory effect when charging the battery.

Full power at all times, without capacity reduction.

Dust cap for an unused socket.

Yes

Weight

700 g

Warranty

5 years

Zippered case for HEINE laryngoscopes

1 pcs.

F-179.00.000
