F-120.10.860

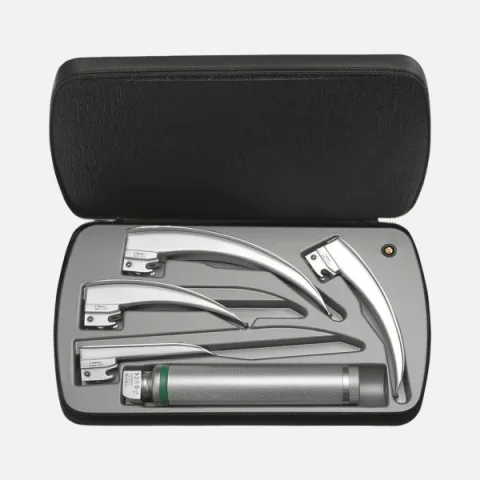

Laryngoscopy set: HEINE Paed 1, Mac 2, Mac 3, Mac 4 blades, HEINE Standard F.O. battery handle, zippered case.

Товар снят с продажи Laryngoscopy set: HEINE Paed 1, Mac 2, Mac 3, Mac 4 blades, HEINE Standard F.O. battery handle, zippered case.

Product discontinued. There is a replacement for this product in the catalog.

Kit contents and specifications
HEINE Classic+ Fiber Optic (F.O.) Laryngoscope Blade Macintosh 2
1 pcs.
F-000.22.102
Specifications
Blade type
Reusable, sterilizable without disassembly
Blade coating
2 layers of nickel + special HEINE coating + chrome
Nickel layer thickness
10 μm
Chrome plating thickness
1 μm
Fiber optic bundle diameter
4,3 mm
Shape of the light guide
Round
Tightness and protection of the fiber optics
Presence of a steel ring around the fiber bundle on both sides of the light guide
Blade length
98 mm
Overall length
114 mm
Distal end width
14 mm
Fiber optic (number of fibers)
6500
Warranty
10 years
HEINE Classic+ Fiber Optic (F.O.) Laryngoscope Blade Macintosh 3
1 pcs.
F-000.22.103
Specifications
Blade type
Reusable, sterilizable without disassembly
Blade coating
2 layers of nickel + special HEINE coating + chrome
Nickel layer thickness
10 μm
Chrome plating thickness
1 μm
Fiber optic bundle diameter
4,3 mm
Shape of the light guide
Round
Tightness and protection of the fiber optics
Presence of a steel ring around the fiber bundle on both sides of the light guide
Blade length
118 mm
Overall length
134 mm
Distal end width
14 mm
Fiber optic (number of fibers)
6500
Warranty
10 years
HEINE Classic+ Fiber Optic (F.O.) Laryngoscope Blade Macintosh 4
1 pcs.
F-000.22.104
Specifications
Blade type
Reusable, sterilizable without disassembly
Blade coating
2 layers of nickel + special HEINE coating + chrome
Nickel layer thickness
10 μm
Chrome plating thickness
1 μm
Fiber optic bundle diameter
4,3 mm
Shape of the light guide
Round
Tightness and protection of the fiber optics
Presence of a steel ring around the fiber bundle on both sides of the light guide
Blade length
139 mm
Overall length
155 mm
Distal end width
15 mm
Fiber optic (number of fibers)
6500
Warranty
10 years
HEINE Classic+ Paed 1 Fiber-optic (F.O.) Blade
1 pcs.
F-000.22.111
Specifications
Blade type
Reusable, sterilizable without disassembly
Blade coating
2 layers of nickel + special HEINE coating + chrome
Nickel layer thickness
10 μm
Chrome plating thickness
1 μm
Fiber optic bundle diameter
3,6 mm
Shape of the light guide
Round
Tightness and protection of the fiber optics
Presence of a steel ring around the fiber bundle on both sides of the light guide
Blade length
78 mm
Overall length
95 mm
Distal end width
13 mm
Fiber optic (number of fibers)
6500
Warranty
10 years
Xenon-halogen bulb XHL 2.5V X-001.88.035
1 pcs.
X-001.88.035
Zippered case for HEINE laryngoscopes
1 pcs.
F-179.00.000
HEINE Standard F.O. XHL 2.5V battery laryngoscope handle
1 pcs.
F-001.22.860
Specifications
Components
Outer part, inner part with XHL bulb, lower module, 2 C / LR14 batteries (not included)
Housing material
Metal, plastic, glass
Surface
Matte with knurling (anti-slip) / Chrome-plated
Handle type
Battery Handle
Handle size
Standard
Connection
Laryngoscope blade connection port (according to "Green Standard" ISO 7376)
Fade-Out function
Yes
Size
163 x 30,8 mm
Weight
254 g
Warranty
5 years
