F-119.10.860

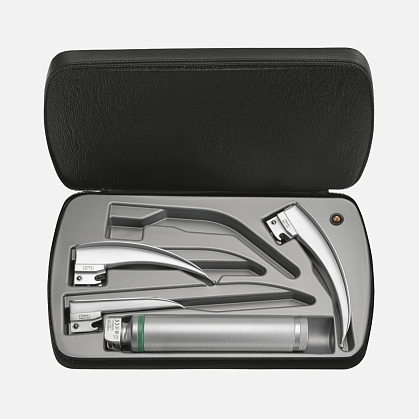

Laryngoscopy set: HEINE Paed 1, Mac 2, Mac 3 blades, HEINE Standard F.O. battery handle, zippered case.

Product discontinued.

Get consultation

Kit contents and specifications

HEINE Classic+ Fiber Optic (F.O.) Laryngoscope Blade Macintosh 2

1 pcs.

F-000.22.102

Specifications

Blade type

Reusable, sterilizable without disassembly

Blade coating

2 layers of nickel + special HEINE coating + chrome

Nickel layer thickness

10 μm

Chrome plating thickness

1 μm

Fiber optic bundle diameter

4,3 mm

Shape of the light guide

Round

Tightness and protection of the fiber optics

Presence of a steel ring around the fiber bundle on both sides of the light guide

Blade length, mm

98 mm

Overall length, mm

114 mm

Distal end width, mm

14 mm

Fiber optic (number of fibers)

6500

Warranty

10 years

HEINE Classic+ Fiber Optic (F.O.) Laryngoscope Blade Macintosh 3

1 pcs.

F-000.22.103

Specifications

Blade type

Reusable, sterilizable without disassembly

Blade coating

2 layers of nickel + special HEINE coating + chrome

Nickel layer thickness

10 μm

Chrome plating thickness

1 μm

Fiber optic bundle diameter

4,3 mm

Shape of the light guide

Round

Tightness and protection of the fiber optics

Presence of a steel ring around the fiber bundle on both sides of the light guide

Blade length, mm

118 mm

Overall length, mm

134 mm

Distal end width, mm

14 mm

Fiber optic (number of fibers)

6500

Warranty

10 years

HEINE Classic+ Paed 1 Fiber-optic (F.O.) Blade

1 pcs.

F-000.22.111

Specifications

Blade type

Reusable, sterilizable without disassembly

Blade coating

2 layers of nickel + special HEINE coating + chrome

Nickel layer thickness

10 μm

Chrome plating thickness

1 μm

Fiber optic bundle diameter

3,6 mm

Shape of the light guide

Round

Tightness and protection of the fiber optics

Presence of a steel ring around the fiber bundle on both sides of the light guide

Blade length, mm

78 mm

Overall length, mm

95 mm

Distal end width, mm

13 mm

Fiber optic (number of fibers)

6500

Warranty

10 years

Xenon-halogen bulb XHL 2.5V X-001.88.035

1 pcs.

X-001.88.035

Zippered case for HEINE laryngoscopes

1 pcs.

F-179.00.000

HEINE Standard F.O. XHL 2.5V battery laryngoscope handle

1 pcs.

F-001.22.860

Specifications

Components

Outer part, inner part with XHL bulb, lower module, 2 C / LR14 batteries (not included)

Housing material

Metal, plastic, glass

Surface

Matte with knurling (anti-slip) / Chrome-plated

Handle type

Battery Handle

Handle size

Standard

Connection

Laryngoscope blade connection port (according to "Green Standard" ISO 7376)

Fade-Out function

Yes

Size

163 x 30,8 mm

Weight

254 g

Warranty

5 years
