A-095.12.210

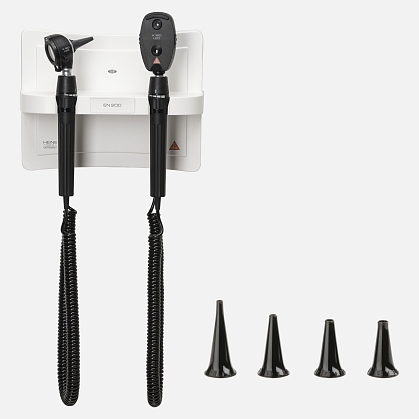

HEINE EN 200 Diagnostic Center with K 180 F.O. LED Otoscope 3.5 V, K 180 Direct LED Ophthalmoscope 3.5 V and Specula

Quantity

Price

1 259 €

prices include VAT

Get consultation

Kit contents and specifications

HEINE K 180 LED F.O. 3.5V Otoscope Head

1 pcs.

B-008.11.550

Specifications

Housing material

Polycarbonate, metal

LED service life

100 000 hours

Mobility testing of the eardrum by pressure

Features an insufflation port

Magnification factor

3 x

Type of illumination

Fiber-optic (F.O.) illumination

Illuminance

380 000 lx

Brightness adjustment

3 - 100%

Light temperature

3500 К

Color Rendering Index (CRI)

Weight

41 g

Level of detail

Sufficient

Viewing window material

Acrylic

Warranty

5 years

Illumination

LED 3,5 V

HEINE K 180 LED Direct Ophthalmoscope Head 3.5V with Aperture Wheel 1

1 pcs.

C-008.30.206

Specifications

Housing material

Polycarbonate, glass

LED service life

100 000 hours

Type of ophthalmoscope

Direct

Illuminance

600 lx

Brightness adjustment

3 - 100%

Light temperature

3500 К

Special index for red colors (R9)

> 93

Color Rendering Index (CRI)

≥ 90

Weight

45 g

Optical system

Standard

Apertures

Slit, Red-free filter, Fixation star with scale, Large circle, Small circle

Slit, Red-free filter, Cobalt blue filter, Large circle, Small circle

Corrective lenses

From -35 D to +40 D

Dust protection

Dust-protected

Instrument type

Professional

Warranty

5 years

Aperture

Aperture wheel 1

Illumination

LED 3,5 V

HEINE EN 200 diagnostic center

1 pcs.

X-095.12.250

Specifications

Housing material

Metal, plastic

Universal instrument clamp

Bayonet

Stepless brightness control

Yes

Brightness level adjustment

From 3% to 100% using the brightness control ring

Retention of the last brightness level on new power-on.

Yes

Automatic turning on and off of the device

Yes

Number of connectable instruments

Two

Soft-start technology

Yes

Theft protection

Yes

Ready for connection

The device has a USB interface for connecting expandable modules.

Warranty

5 years

Set of HEINE reusable ear specula Ø 2.4, 3, 4, 5 mm for otoscopes

1 pcs.

B-000.11.111

Specifications

Reusability

Reusable

Diameter

2,4 mm, 3,0 mm, 4,0 mm, 5,0 mm
