A-279.24.420

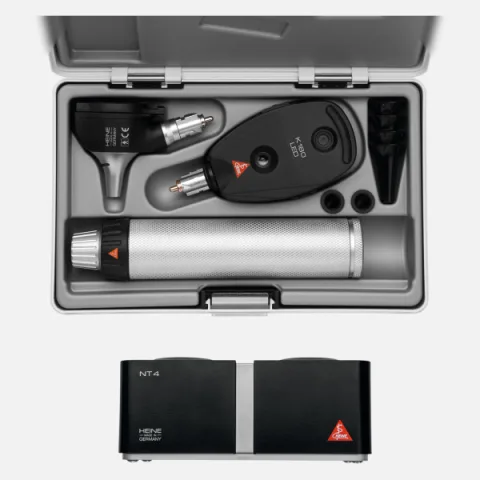

HEINE K 180 F.O. LED Otoscope 3.5 V with K 180 Direct LED Ophthalmoscope 3.5 V, BETA 4 NT Rechargeable Handle, NT 4 Desktop Charger, Specula and Hard Case

Quantity

Price

Get consultation

Kit contents and specifications

HEINE K 180 LED F.O. 3.5V Otoscope Head

1 pcs.

B-008.11.550

Specifications

Housing material

Polycarbonate, metal

LED service life

100 000 hours

Mobility testing of the eardrum by pressure

Features an insufflation port

Magnification factor

3 x

Type of illumination

Fiber-optic (F.O.) illumination

Illuminance

380 000 lx

Brightness adjustment

3 - 100%

Light temperature

3500 К

Color Rendering Index (CRI)

Weight

41 g

Level of detail

Sufficient

Viewing window material

Acrylic

Warranty

5 years

Illumination

LED 3,5 V

HEINE K 180 LED Direct Ophthalmoscope Head 3.5V with Aperture Wheel 1

1 pcs.

C-008.30.206

Specifications

Housing material

Polycarbonate, glass

LED service life

100 000 hours

Type of ophthalmoscope

Direct

Illuminance

600 lx

Brightness adjustment

3 - 100%

Light temperature

3500 К

Special index for red colors (R9)

> 93

Color Rendering Index (CRI)

≥ 90

Weight

45 g

Optical system

Standard

Apertures

Slit, Red-free filter, Fixation star with scale, Large circle, Small circle

Slit, Red-free filter, Cobalt blue filter, Large circle, Small circle

Corrective lenses

From -35 D to +40 D

Dust protection

Dust-protected

Instrument type

Professional

Warranty

5 years

Aperture

Aperture wheel 1

Illumination

LED 3,5 V

HEINE BETA 4 NT Rechargeable Handle

1 pcs.

X-007.99.396

Specifications

Components

Base module, lower module, Li-ion battery (X-007.99.383)

Housing material

Metal, plastic

Surface

Matte with knurling (anti-slip)

Universal instrument clamp

Bayonet

Stepless brightness control

Yes

Brightness level adjustment

From 3% to 100% using the brightness control ring

Fade-Out function

Yes

Size

143 x 30 mm

Charge time

2 hours (90%) / 6 hours (100%)

Working time

7 hours when used with otoscopes and ophthalmoscopes.

Weight

235 g

Warranty

5 years

HEINE NT 4 Desktop Charger

1 pcs.

X-002.99.494

Specifications

Housing material

Metal, plastic

Size

142 x 61 x 66 mm

Charge time

Charge time for handles: * 2 hours 45 minutes (90%) * 6 hours (100%)

Charging sockets

Charging 1 and 2 handles

Independent. Simultaneous charging of two handles is possible.

Automatic charging at any charge level

Yes

Automatic shut-off when the battery is fully charged

Yes

Charge indicator

Pulsing light indicates that charging is in progress, while a solid light indicates that charging is complete.

No memory effect when charging the battery.

Full power at all times, without capacity reduction.

Dust cap for an unused socket.

Yes

Weight

700 g

Warranty

5 years

Set of HEINE reusable ear specula Ø 2.4, 3, 4, 5 mm for otoscopes

1 pcs.

B-000.11.111

Specifications

Reusability

Reusable

Diameter

2,4 mm, 3,0 mm, 4,0 mm, 5,0 mm

Case for A-279 sets otoscope and direct ophthalmoscope

1 pcs.

A-279.06.000
