J-008.31.410

HEINE ML4 LED headlight

HEINE ML4 LED headlight

Specifications

The HEINE ML4 LED headlight is a premium-class medical headlight designed to illuminate the working field in medical practice. Thanks to its powerful LED module, it provides uniform and natural illumination without shadows or distortions, allowing the specialist to clearly see the smallest details.

HEINE ML4 LED has found its application in many fields:

  • Otorhinolaryngology (ENT) - used for examination of the nasopharynx, ear canal, and vocal cords.
  • Dermatology - illumination of small skin formations, moles, and skin lesions during examination or removal.
  • Surgery - provides powerful illumination of the surgical field directly in the surgeon’s line of sight.
  • Veterinary medicine - used in surgical and diagnostic procedures for animals.
  • Obstetrics and gynecology - used during examinations and minor surgical interventions.

HEINE ML4 LED reduces eye strain and helps the specialist focus on details that are critical for successful outcomes during medical procedures. How does it achieve this?

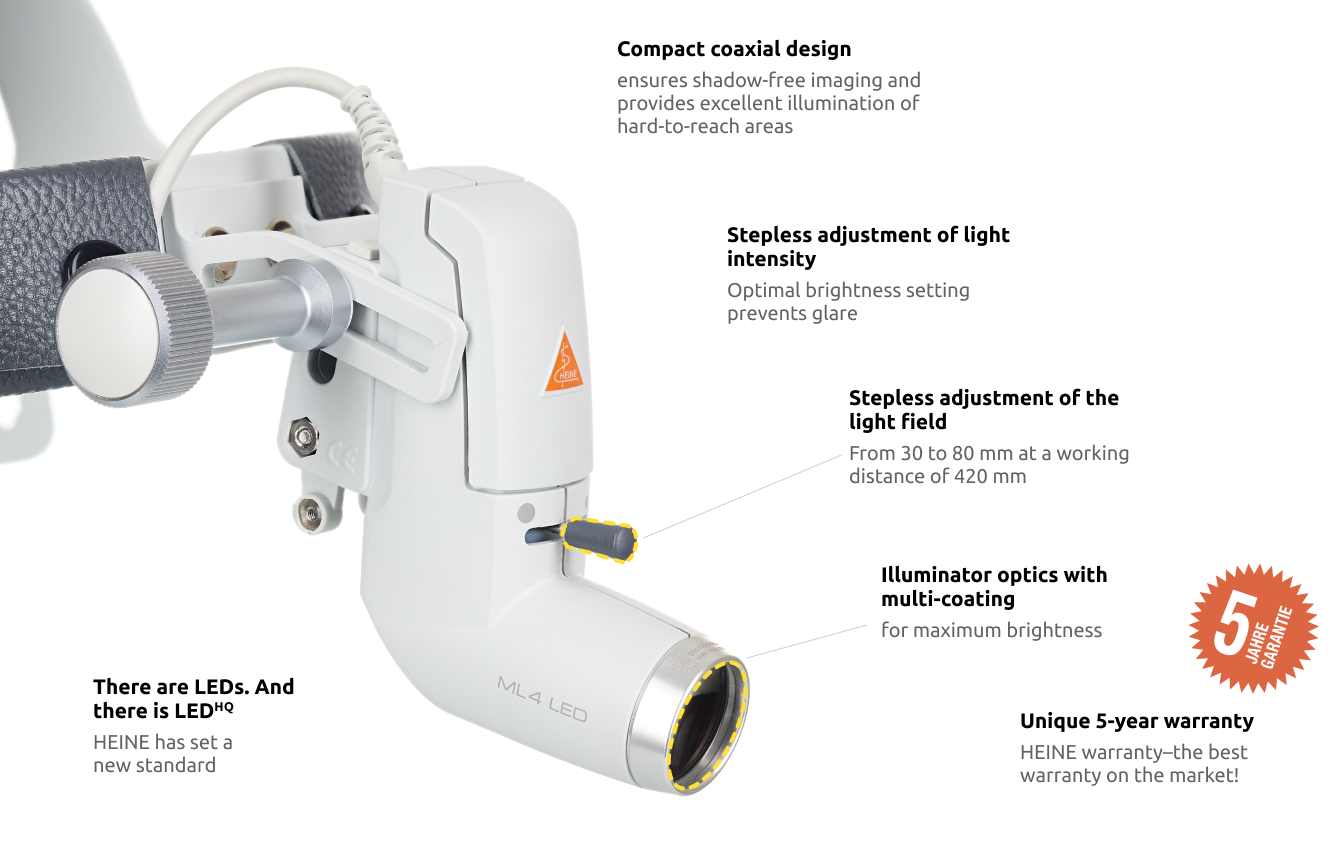

Uses multiple technologies for ideal illumination

HEINE ML4 LED uses LEDHQ technology, which significantly outperforms standard LED lighting. Unlike conventional LED systems, LEDHQ eliminates distortions and overheating, ensuring stable operation and accuracy during medical procedures.

Furthermore, the color temperature is around 5500 K, which is very close to natural daylight. The light has a color rendering index of 93-95 out of 100, which contributes to better tissue differentiation and precise visualization. The built-in coaxial design ensures shadow-free and uniform illumination even in the most hard-to-reach areas.

By choosing HEINE ML4 LED, you get bright, uniform illumination without shadows or color distortion.

HEINE ML4 LED has an adjustable light spot size

The diameter of the light spot can be adjusted from 30 to 80 mm (at a working distance of 420 mm), allowing adaptation to any task. The brightness of the light spot is steplessly adjustable (0-100%) to prevent glare and ensure visual comfort.

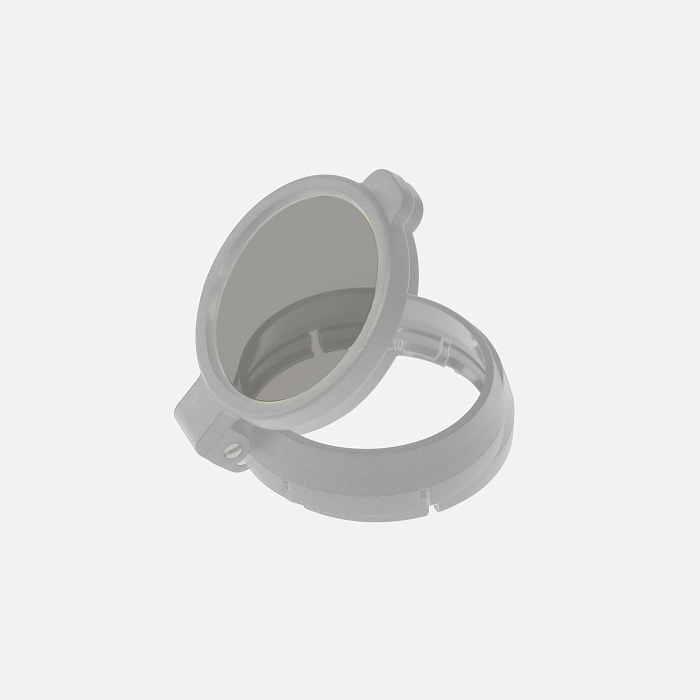

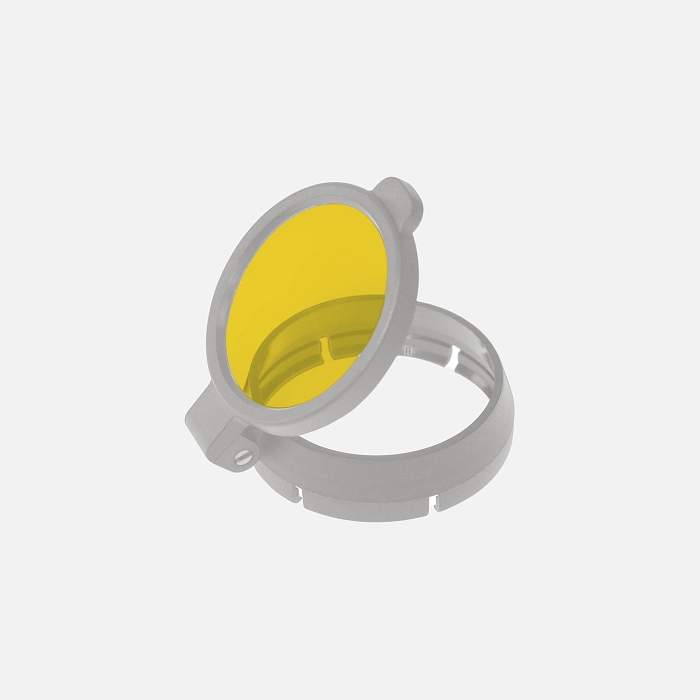

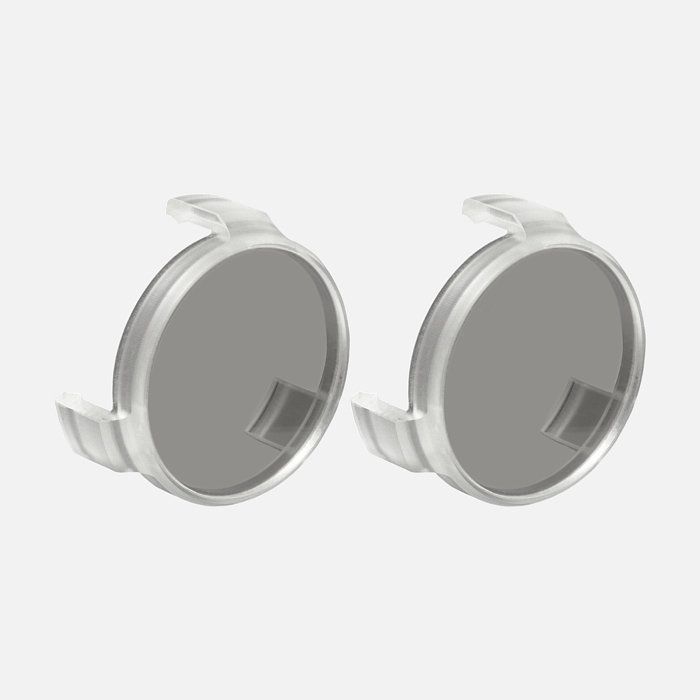

Additional filters expand the functionality of the headlight. The P2 polarization filter improves image contrast by reducing reflections from moist surfaces such as mucous membranes and tissues. The yellow filter suppresses the blue part of the spectrum, reducing eye fatigue and increasing comfort when working with sensitive areas.

Convenience and comfort while wearing

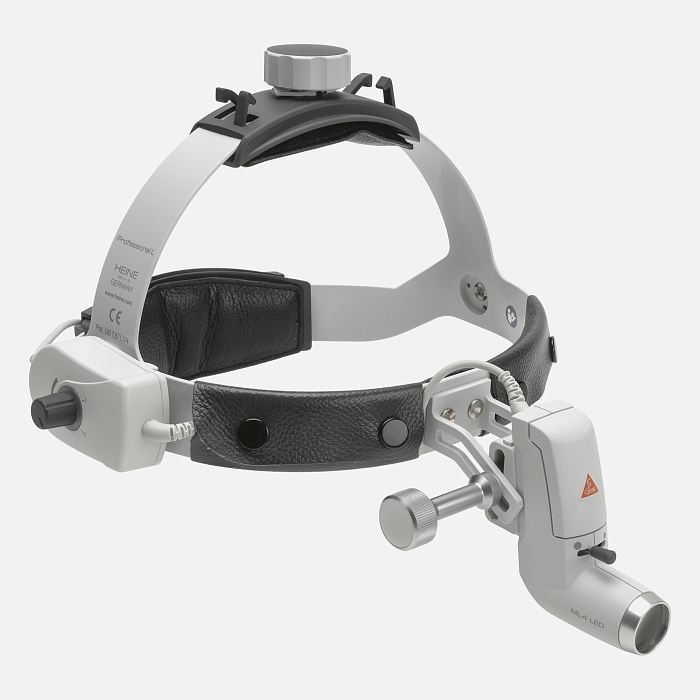

The HEINE Professional L headband features an ergonomic design and even weight distribution, eliminating discomfort during use. A fully adjustable height and width system allows the fit to be customized for any head shape.

High mobility

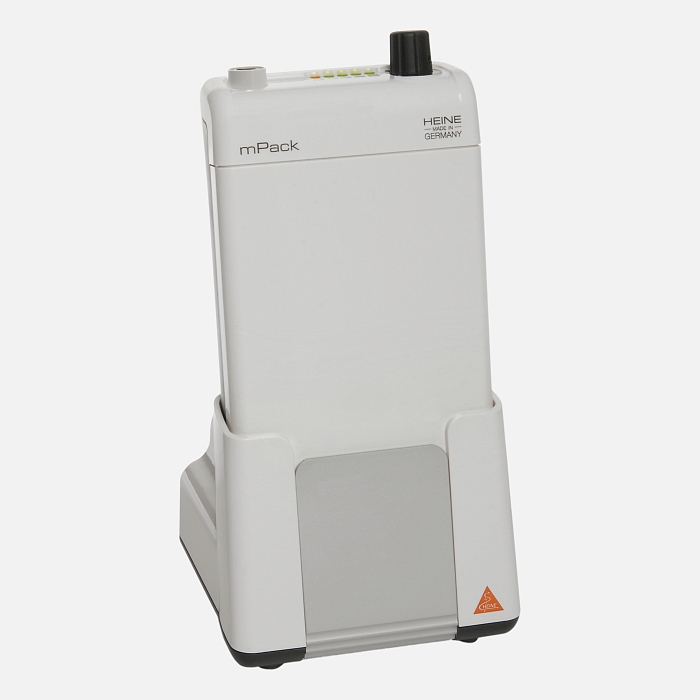

HEINE ML4 LED offers two portable power options: the HEINE mPack and the mPack UNPLUGGED. Portability frees the physician from being tied to stationary power sources, providing maximum mobility at work. Thanks to lithium-ion technology, it has triple the capacity compared to nickel-cadmium batteries and can operate autonomously for up to 8.5 hours at full power.

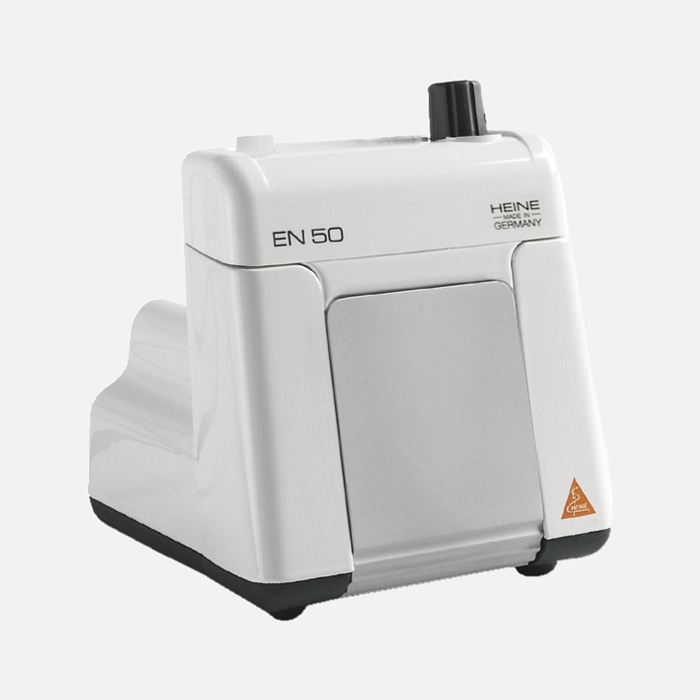

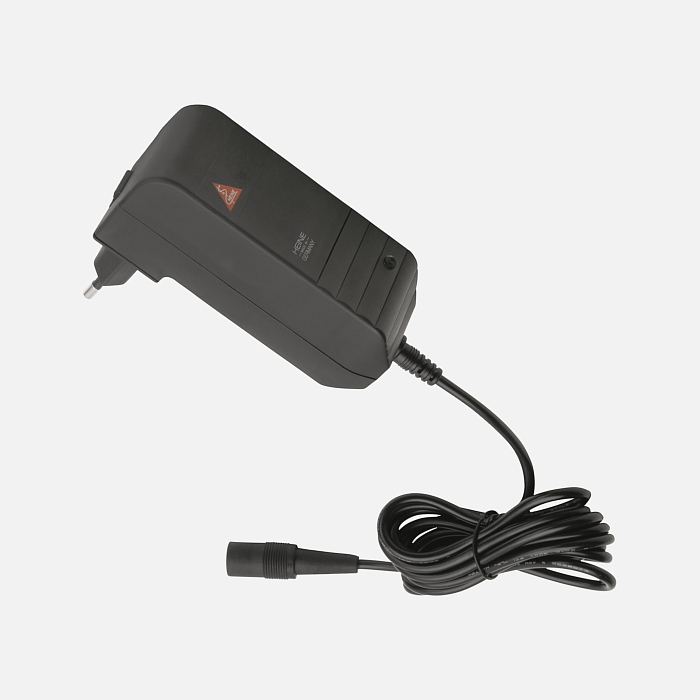

Fast charging allows a full recharge in just 2 hours, while the charge indicator helps monitor remaining operating time. The device supports various charging methods, including desktop, wall transformer, or mains adapter, making it versatile and convenient in any working environment.

The HEINE mPack UNPLUGGED is a wireless battery that attaches directly to the headband, providing complete freedom of movement and ease of use. Its light weight and optimal load distribution prevent discomfort even during prolonged use.

The charge indicator allows monitoring of remaining operating time, and the intelligent system enables use of the device even while charging.

Everything you need for instrument care

HEINE ML4 LED with LEDHQ technology is a reliable and high-tech solution for professionals who require flawless illumination under any conditions.

With this headlight, every detail remains in sight, while comfort and work efficiency reach a new level.


HEINE ML4 LED headlight

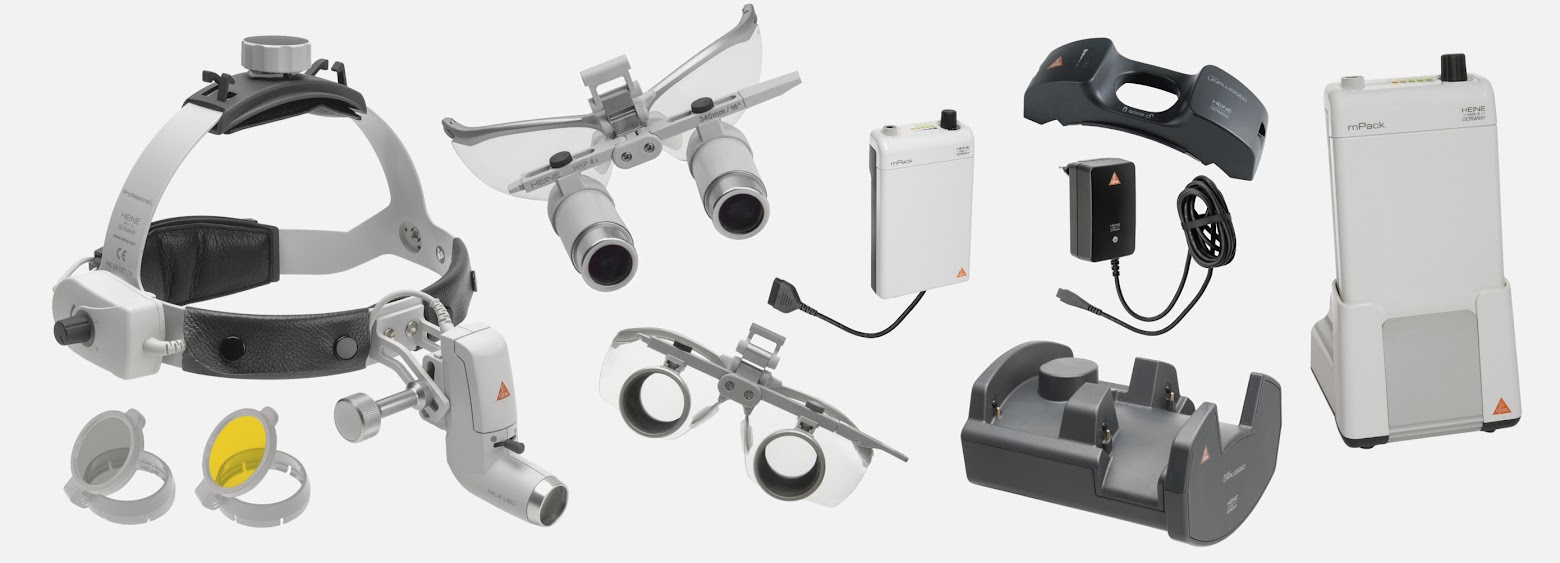

Ready-made kits
Reviews
Kuleshov A.A.
Kuleshov A.A. vertebrology Head of the Department of Vertebrology (14th Department), Doctor of Medical Sciences, Orthopedic Trauma Surgeon Federal State Budgetary Institution "N.N. Priorov National Medical Research Center of Traumatology and Orthopedics" of the Ministry of Health 2 Jun 2022

The HEINE ML4 LED headlight was used in the operating room to illuminate the surgical field during various spinal procedures. The quality of materials, assembly, and design of HEINE products is at a very high level. The solid structural elements are reliable, while the adjustable fixation components allow for individual head size adjustments, ensuring the headlight fits snugly and comfortably without causing additional discomfort. An important advantage is that all adjustments, including headband positioning, can be made with one hand. The LEDs provide an even light spot of sufficient brightness and deliver natural color rendering.

Sultanov R.V.
Sultanov R.V. surgery Head of the Department of Vascular Surgery GAUZ KKB named after S.V. Belyaev 14 Mar 2022

The binocular loupes Heine ML4 LED UNPLUGGED HR 2.5x were tested during surgical procedures on arteries of the lower and upper limbs. The average diameter of the anastomoses sutured ranged from 2 to 4 mm. During use, the loupes demonstrated high efficiency — the vascular sutures were precise, and the isolation of small vessels was performed without technical difficulties.

Shmelev A.V.
Shmelev A.V. otorhinolaryngology Head of Department Branch No. 5 of the Federal State Budgetary Institution "N.N. Burdenko Main Military Clinical Hospital" of the Ministry of Defense 14 Mar 2022

The HEINE ML4 LED headlight with a wireless battery mounted on the headband was used during consultative examinations, in the dressing room, the ICU, and the operating theater. As always with HEINE, the material quality, assembly, and design are of a very high standard. The LEDs, with a color temperature of 4500 K, produce an even and bright light spot and provide natural color rendering. In our opinion, the wireless battery headband model offers excellent mobility and is best suited for use in examination and dressing rooms.

Shestakov A.L.
Shestakov A.L. thoracoabdominal surgery and oncology Head of the Department of Thoracoabdominal Surgery and Oncology, Petrovsky National Research Center of Surgery (State Scientific Center, Federal State Budgetary Scientific Institution) State Scientific Center, Federal State Budgetary Scientific Institution "Petrovsky National Research Center of Surgery" 13 Jan 2022

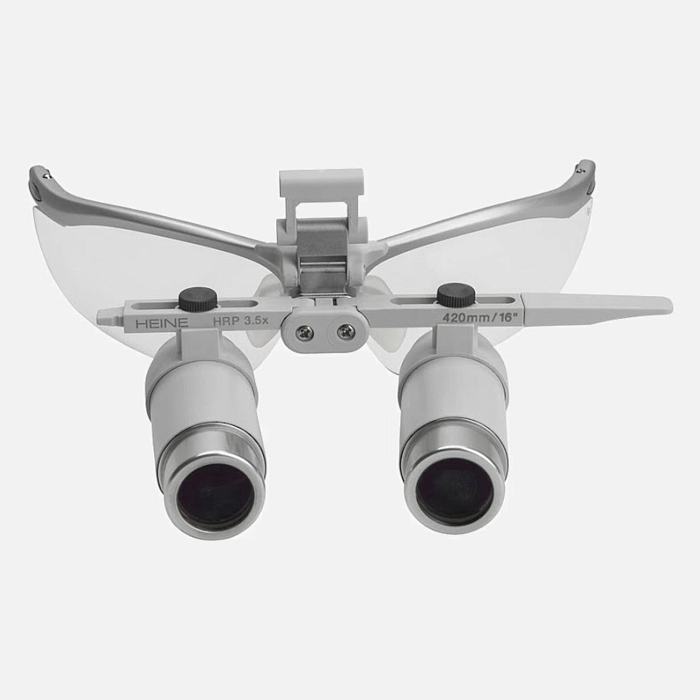

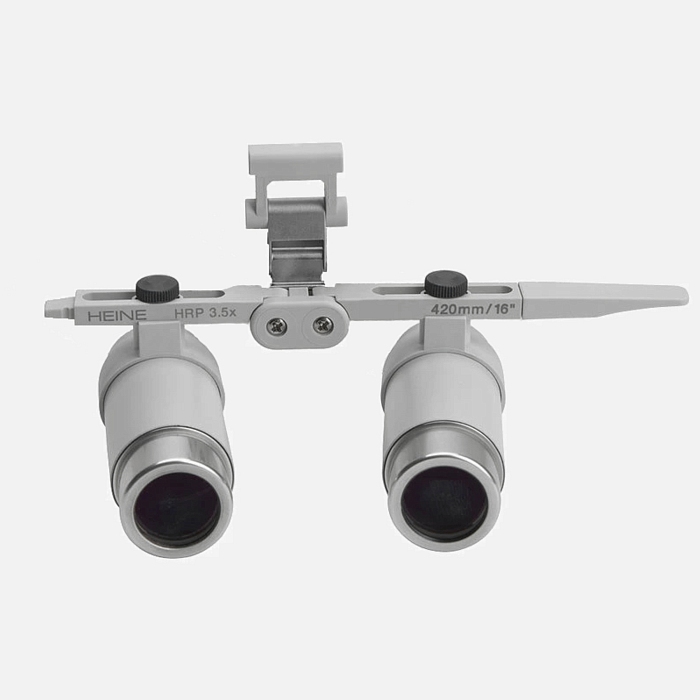

The binocular loupe Heine HRP 3.5x with a working distance of 420 mm and the HEINE ML4 LED headlight were used in surgical practice during thoracoabdominal operations, particularly during gastrectomy with resection of the lower third of the esophagus and transhiatal esophageal resection. The experience of using this optical instrument from HEINE demonstrated high efficiency and convenience in thoracoabdominal surgery.

Babayan A.A.
Babayan A.A. surgery surgeon in the liver transplantation department State Scientific Center, Federal State Budgetary Scientific Institution "Petrovsky National Research Center of Surgery" 13 Jan 2022

For the trial, binocular loupes HR 2.5x with a working distance of 340 mm, the ML4 LED headlight, and the Li-ion mPack battery were provided. Upon first use, the equipment stands out for its ability to adjust both the headlight and binoculars to individual parameters. During use in a prolonged surgical operation, no discomfort was observed; the components mounted on the headband remained stable during head movements, and the brightness of the light allowed comfortable work at medium power levels.

Lysenko A.V.
Lysenko A.V. cardiac surgery Head of the Department of Cardiac Surgery State Scientific Center, Federal State Budgetary Scientific Institution "Petrovsky National Research Center of Surgery" 13 Jan 2022

The ophthalmic binocular loupe Heine HRP 3.5x was used in surgical practice during coronary artery bypass grafting procedures in patients with coronary heart disease. The experience of using this optical instrument from Heine demonstrated optimal efficiency in coronary surgery, as well as convenience and high ergonomics in use.

Grinkevich M.A.
Grinkevich M.A. Otorhinolaryngologist Clinic “+1 in City”.

The ML4 LED headlight is ergonomic and easy to use. The headband, with adjustable sizing to fit the individual head, is securely fixed and does not cause discomfort. The light spot is sufficiently bright, with adjustable brightness and spot diameter for specific situations and tasks. The powerful battery allows for prolonged use without the need for recharging. During the period of use, no discomfort or drawbacks affecting the physician’s work were noted.
