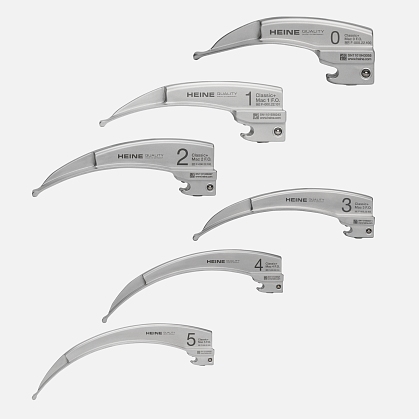

HEINE Classic+ Macintosh fiber-optic (F.O.) blades

HEINE Classic+ Macintosh fiber-optic (F.O.) blades
F-000.22.100F-000.22.101F-000.22.102F-000.22.103F-000.22.143F-000.22.104F-000.22.105
Assemble kit Choose ready-made kit Get consultation

Specifications

Reusable HEINE Classic+ Macintosh laryngoscope blade combines an anatomically correct curved shape with fiber-optic (F.O.) illumination, providing a clear view of the vocal cords via indirect elevation of the epiglottis in the vallecula. This blade type is preferred for adult patients and is widely used in anesthesiology and intensive care.

Advantages of HEINE Classic+ Macintosh blades:

  • high-quality illumination - using Fiber Optic (F.O.) technology. The blade integrates a HiLite fiber-optic light guide with a diameter of 4.3 mm containing up to 6500 individual microfibers, delivering uniform, flicker-free white light with high color rendering.
  • made of high-quality stainless steel - with additional special coatings that make the blades resistant to corrosion and mechanical damage. The blade has a one-piece design without assembly screws, allowing it to withstand up to 4000 autoclaving cycles at temperatures up to 134 °C.
  • easy cleaning - thanks to the smoothSURFACE finish. To date, there has not been a single nosocomial case - i.e., a hospital-acquired infection - caused by a HEINE Classic+ laryngoscope blade.
  • sealed and protected fiber optics - no liquids can penetrate the interior of the blade during intubation or sterilization because the fiber bundles are not only bonded but also press-fitted. A pressure test at 3 bar is performed to verify tightness.
  • high cost-efficiency and eco-friendliness - achieved through reusable operation.
  • 100% quality control - each blade is tested 51 times.

And this is only part of the features of HEINE reusable blades. Read more about the advantages of reusable blades in our blog.


  • Blade dimensions
    0, 1, 2, 3, 3m, 4, 5
  • Blade type Reusable, sterilizable without disassembly

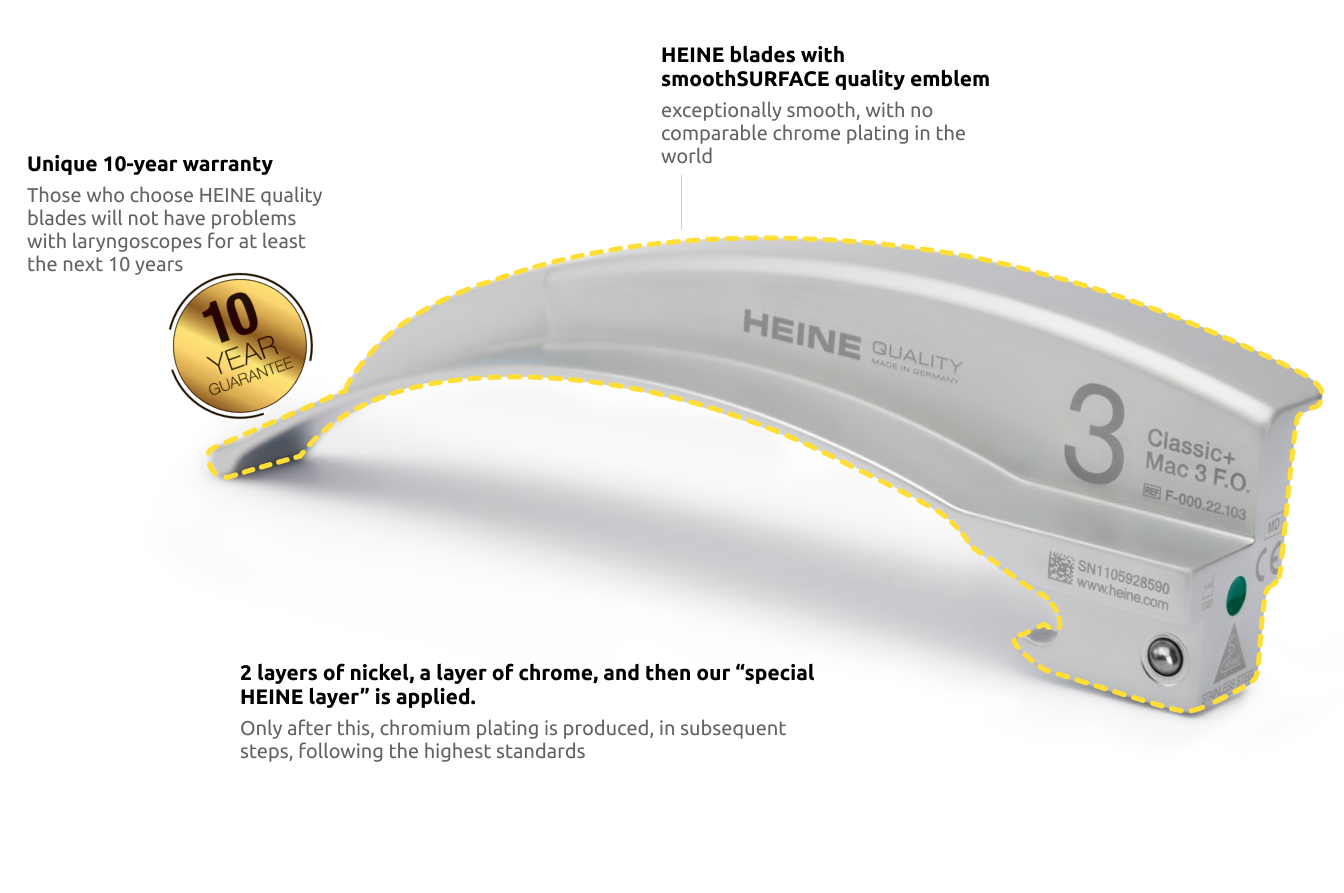

  • Blade coating 2 layers of nickel + special HEINE coating + chrome
  • Nickel layer thickness 10 μm
  • Chrome plating thickness 1 μm
  • Fiber optic bundle diameter
    4,3 mm
  • Shape of the light guide Round
  • Tightness and protection of the fiber optics Presence of a steel ring around the fiber bundle on both sides of the light guide
  • Fiber optic (number of fibers) 6500
  • Warranty 10 years
HEINE Classic+ Macintosh fiber-optic (F.O.) blades
Assemble your kit

Configure a suitable kit for your tasks

Assemble your kit
Ready-made kits
Reviews Write a review
Gabitov M.V.
Gabitov M.V. anesthesiology and intensive care anesthesiologist-intensivist, Candidate of Medical Sciences Branch "Medincenter" of the Main Administration for Service to the Diplomatic Corps under the Ministry of Foreign Affairs of Russia 01/18/2022

For three weeks, I used the HEINE laryngoscope daily. During typical intubations (Mallampati class I–II), I used the laryngoscope with Macintosh blades. In my opinion, the HEINE laryngoscope has two advantages compared to others. First, the light quality: it is bright, white, and does not flicker. Second, the high-quality steel, which is evident to the naked eye.

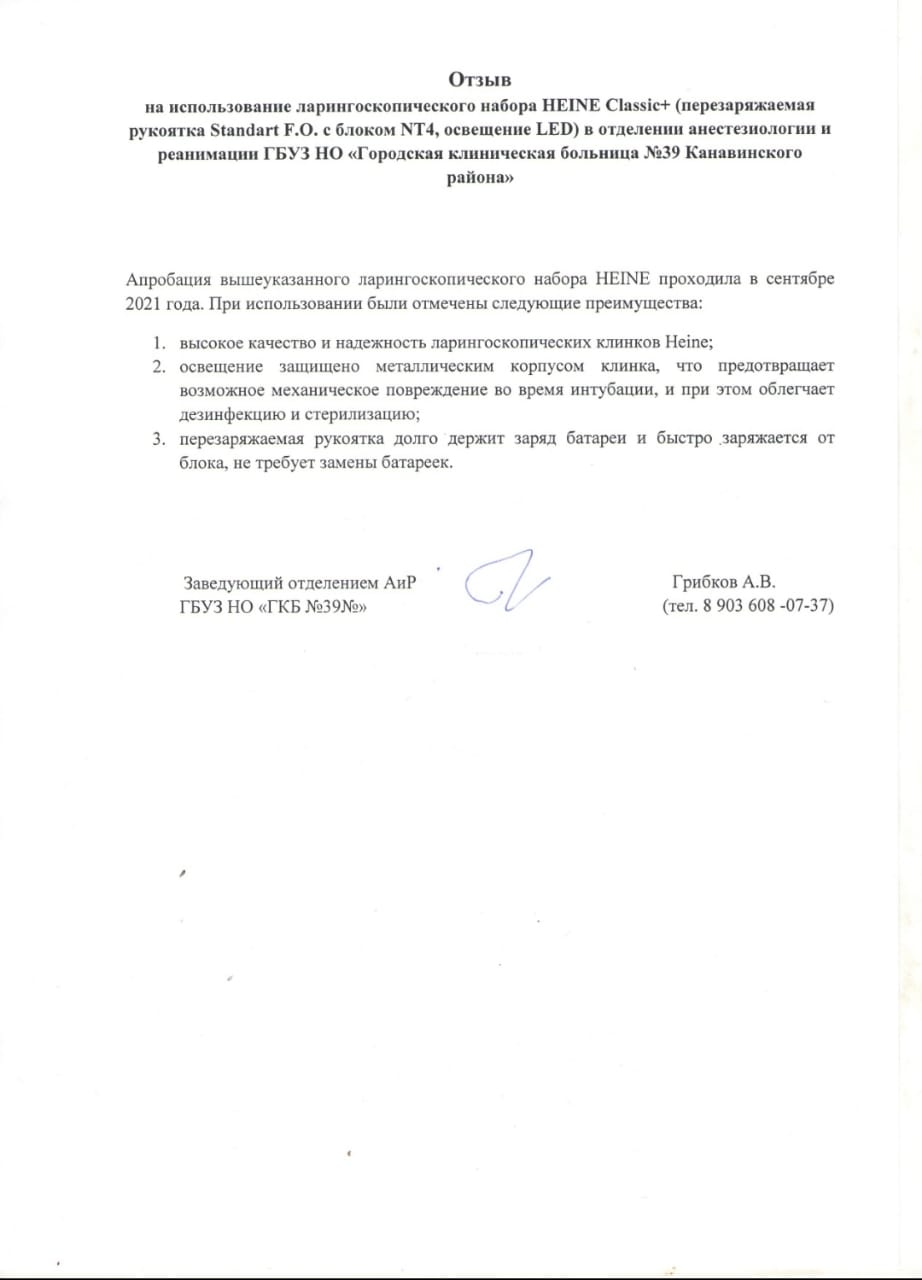

Gribkov A.V.
Gribkov A.V. anesthesiology and intensive care Head of the Department of Anesthesiology and Intensive Care State Budgetary Healthcare Institution of the Nizhny Novgorod Region "City Clinical Hospital No. 39" 01/13/2022

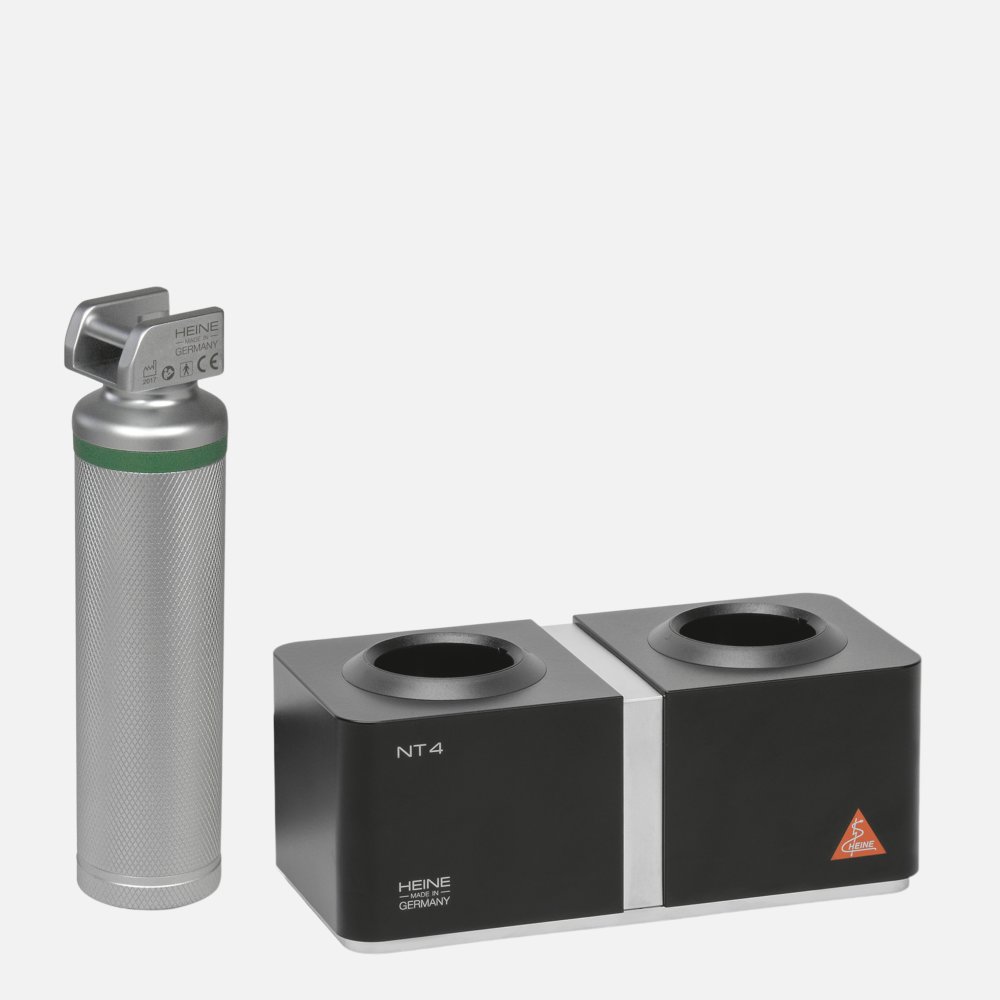

Review of the HEINE Classic+ Laryngoscope Set (rechargeable Standard F.O. handle with NT4 power supply and LED illumination).
